Geberit pneumatic wall support

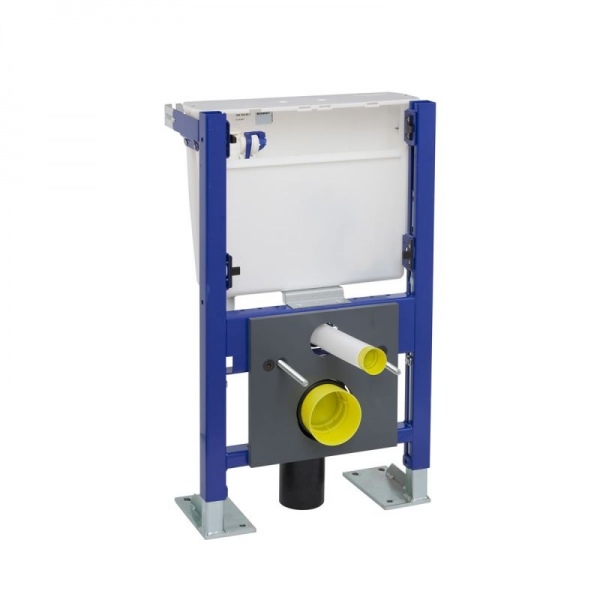

Geberit Duofix wall support, specially for bathroom furniture, freestanding,  low height (79cm), pneumatic control

More details

More info

Geberit Duofix wall support, specifically for bathroom furniture, freestanding, low height (79cm), pneumatic control

Bati support GEBERIT faible hauteur autoportant commande pneumatique

Universal top range wall support, freestanding fixing, designed to fit any type of wall standing toilet bowls, on the front of any type of wall (even fragile such as drywalls)

Geberit quality : top of the tops !


Use :

  • To set up a wall standing bowl
  • Lower height for low height walls (attic or wall with a window)
  • Universal set up on any type of dividing wall
  • Electrical duct or partiel height wall set up
  • Possible connection to  Geberit AquaClean bidet toilets
  • Enables the set up of WiCi Boxi Wall mounted toilets with built-in hand wash basin


Features :

  • Height of the wall support : 79cm (minimal height)
  • Automatic blocking leg , adjustable between 0 and 20cm
  • Depth of the set up, adaptable between 17 and 26cm
  • Pneumatic trigger ( capillary fiber control)
  • Free position of the flush control plate
  • Double push rinse
  • Supply : bottom left side
  • Freestanding system (fits fragile wall such as drywalls)
  • Wall hanging fasteners included for the upper part (back wall)
  • Impuls 360 float valve
  • Outlet elbow 90mm PeHD
  • Zinc-coated frame, blue coloured

Detailed figures :

  • Toilet flush volume - factory settings : 6 and 3 litres
  • Large volume – volume control span 6 to 9 litres
  • Small volume – volume control span : 3 to 4 litres
  • Supply pressure span : 0,2 to 10 bars

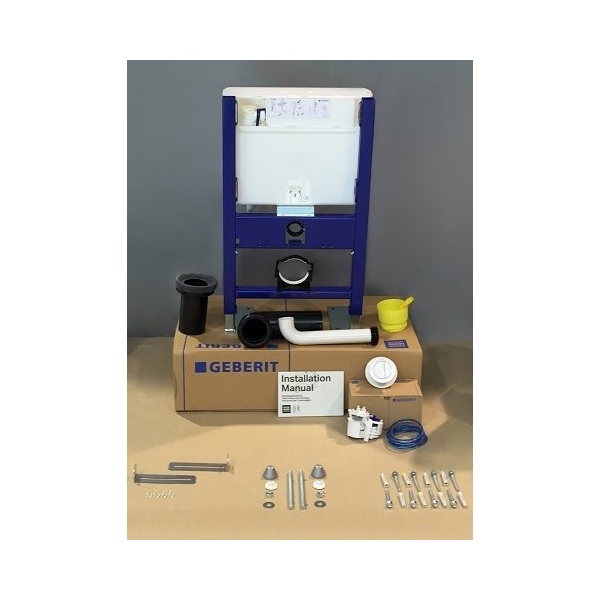

Delivered with :

  • Duofix system wall fixing set
  • Supply R 1/2’’ with built-in stopcock
  • Protection corcks
  • 2 M12 threaded rods to fix the bowl
  • Geberit AquaClean supply sleeving
  • ø 90 mm connection spigots
  • Outlet elbow 90mm PeHD
  • ø 90/110 mm Transition sleeve
  • Fitting tools


Please note :

The control plate included with this wall support is restricted to walls up to 19mm thick (furnished laqued or stratified types)

In order to install the control plate on a thicker wall (as instance : on a tiled wall), you have to order a specific plate, as you choose, with a white or a bi-chrome finish
